Electromagnetic Navigation for Femoral Osteotomy Using High-Accuracy X-ray-to-CT Registration

01. Overview

Accurate execution of preoperative plans in corrective femoral osteotomies remains a substantial challenge. Traditional free-hand execution depends heavily on surgeon experience and iterative fluoroscopy, exposing the patient and surgical team to significant radiation. While patient-specific 3D-printed guides (PSI) constrain tool placement to preoperative plans, they require extensive soft-tissue stripping, generate production lead times, and add to overall surgical costs.

To address these limitations, we present an integrated, electromagnetic tracking (EMT)-based navigation system. The workflow unifies three core components: preoperative CT-based planning, an automatic two-view C-arm calibration and X-ray-to-CT registration pipeline, and real-time intraoperative tracking of surgical tools. This system maintains a minimal surgical footprint and provides real-time guidance for sawblade positioning and fragment correction without line-of-sight constraints.

• Integrated EMT navigation pipeline combining CT-based preoperative planning, one-time C-arm calibration, and X-ray-to-CT registration from only two fluoroscopic images.
• 52% lower mean angular error than free-hand technique (3.05° ± 0.75° vs. 6.32° ± 2.36°, p = 0.031), with zero EMT trials exceeding the 5° clinical threshold.
• Statistical equivalence to patient-specific instrumentation (PSI) in angular (p ≤ 0.02) and translational (p = 0.048) accuracy, without PSI's added soft-tissue exposure or fabrication lead time.
• U-Net-based automatic C-arm calibration from fluoroscopic bead detection, replacing manual calibration steps.

02. Method & Pipeline

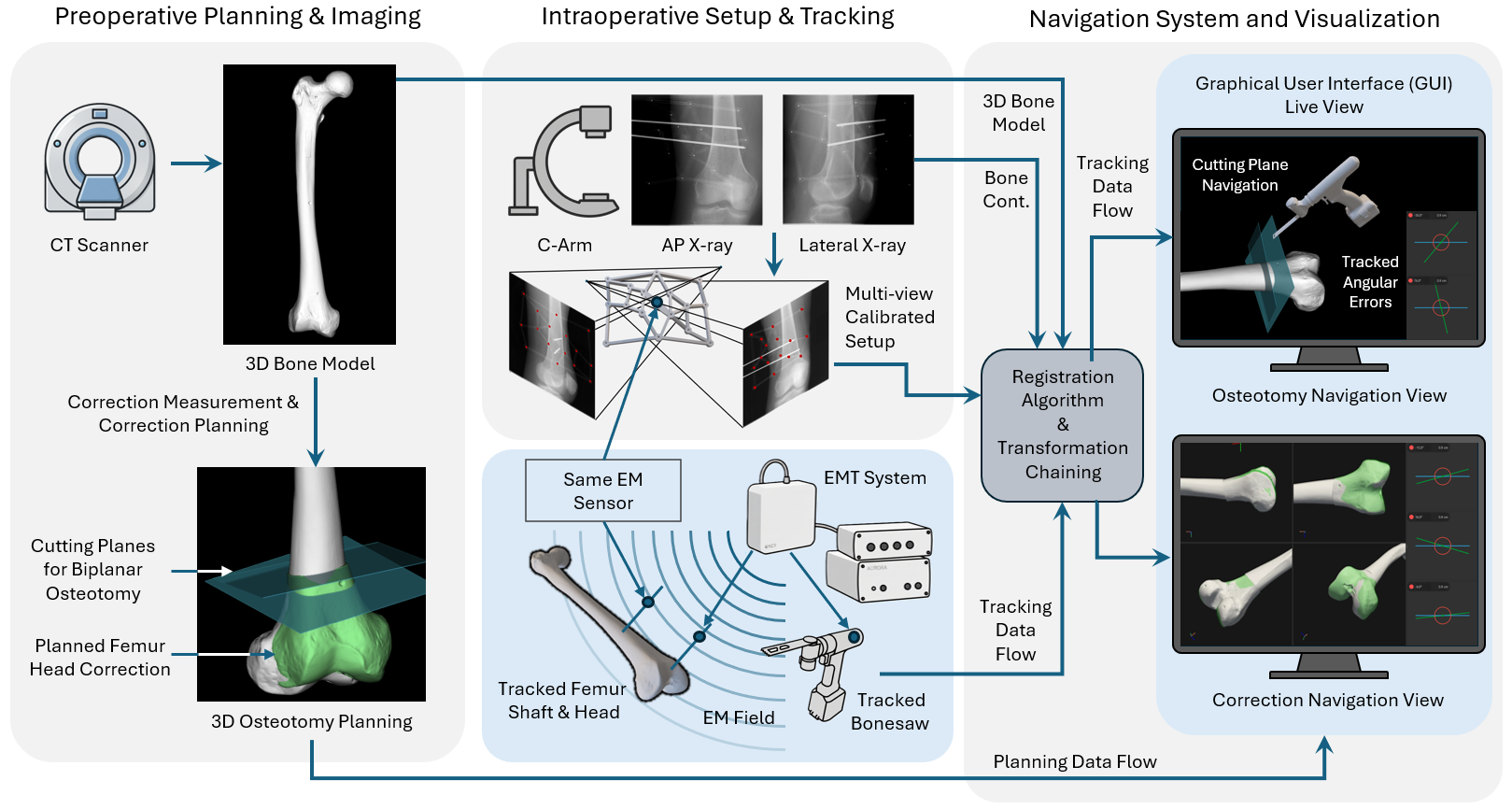

Figure 1: System dataflow overview. The workflow starts from preoperative CT planning (left), proceeds to automatic intraoperative calibration and registration using two fluoroscopic views (middle), and finishes with dynamic real-time sawblade and fragment tracking displayed on the custom GUI (right).

The registration protocol operates in two phases:

Initial Registration: Establishes a spatial link between the preoperative CT bone model and the EMT coordinate system using a custom calibration sleeve mounted with EMT sensors. A U-Net-based model automatically identifies calibration bead locations in the C-arm images to solve C-arm intrinsic/extrinsic parameters and compute the 3D X-ray-to-CT transform.

Real-Time Navigation: Tracks the relative pose of distal fragments with respect to the proximal femur using miniature sensors anchored to 3mm Kirschner wires (K-wires). Dynamic updates enable the visual GUI to continuously decompose alignment errors into extension, derotation, and varisation.

03. Navigation Animation

04. Key Feasibility Results

The proposed system was validated through a feasibility study utilizing 18 synthetic femora replicas and compared against conventional free-hand techniques and patient-specific instrumentation (PSI) guides.

Our navigation system showed a 52% reduction in mean angular error compared to free-hand techniques. Crucially, the system demonstrated statistical equivalence to PSI guides in both rotation and translation accuracy, while requiring significantly less soft-tissue exposure and only two fluoroscopic views for initialization (compared to clinical free-hand benchmarks which average over 34 images).
